Model Number |
I91ET/I91EV |

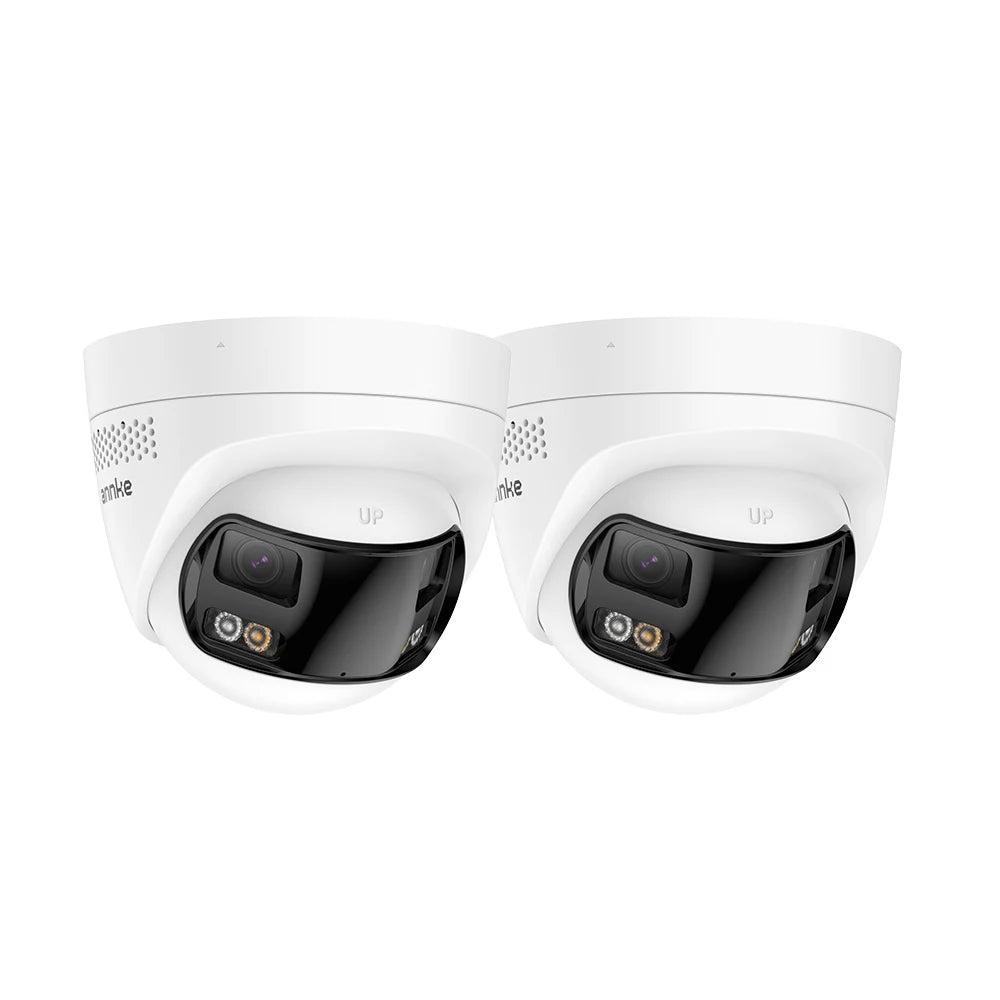

IP Camera |
Camera |
Image sensor |
2×1/2.4" Progressive Scan CMOS |
Max resolution |
4096 x 1860 |
Main Stream |
50 Hz: 20 fps (4096 x 1860)
60 Hz: 20 fps (4096 x 1860) |
Sub Stream |
50 Hz：20 fps（1200 × 536, 960 × 432）
60 Hz：20 fps（1200 × 536,960 × 432） |
Video compression |
Main Stream: H.265+/H.265/H.264+/H.264
Sub Stream: H.265/H.264/MJPEG |
Video Bit Rate |
32 Kbps to 16 Mbps |
Built-in Microphone |
Built-in Microphone, record with audio |
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
Built-in Speaker |
Yes, max. sound pressure: 10 cm: 97 dB |
Lens |
Dual lens: 2 mm |
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON) |
Angle of View |
Horizontal FOV: 180°, Vertical FOV: 77° |
Supplement Light Type |
Smart light, white light, IR light |
Supplement Light Range |
White light up to 30 m, IR light up to 30m |
Motion detection 2.0 |
Supoort, include human & vehicle detection |
Image Parameters Switch |
Yes |
Image Enhancement |
BLC, HLC, 3D DNR |
Wide Dynamic Range |
120dB WDR |
Network Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPV4, IPV6, IGMP, UDP, QoS, FTP, SMTP |
API |
Support Open Network Video Interface protocol, version 19.12 |
Basic Event |
Motion detection (support human and vehicle detection), video tampering, exception detection |
Audio Alarm |
Support(Parameters adjustable,support custom audio, can be triggered from APP) |
Flashing Alarm |
White light, frequency adjustable, can be triggered from APP |
Region of Interest (ROI) |
1 fixed region for main stream |
Privacy Mask |
4 programmable polygon privacy masks |
General Function |
Rotate, remote access, IP Address Filter |
General |
Housing |
Metal&Plastic, white color |
Operating Power |
PoE (802.3af)，max 11.5W,
12 VDC ± 25%,Ø 5.5 mm coaxial power plug, max 10W |
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
Storage |
Built-in micro SD/SDHC/SDXC slot, up to 512 GB |
Hardware Reset |
Yes |
Operating Temperature |
-22 °F – 140 °F /-30 °C – 60 °C |
Indoor/Outdoor |
Indoor/Outdoor |

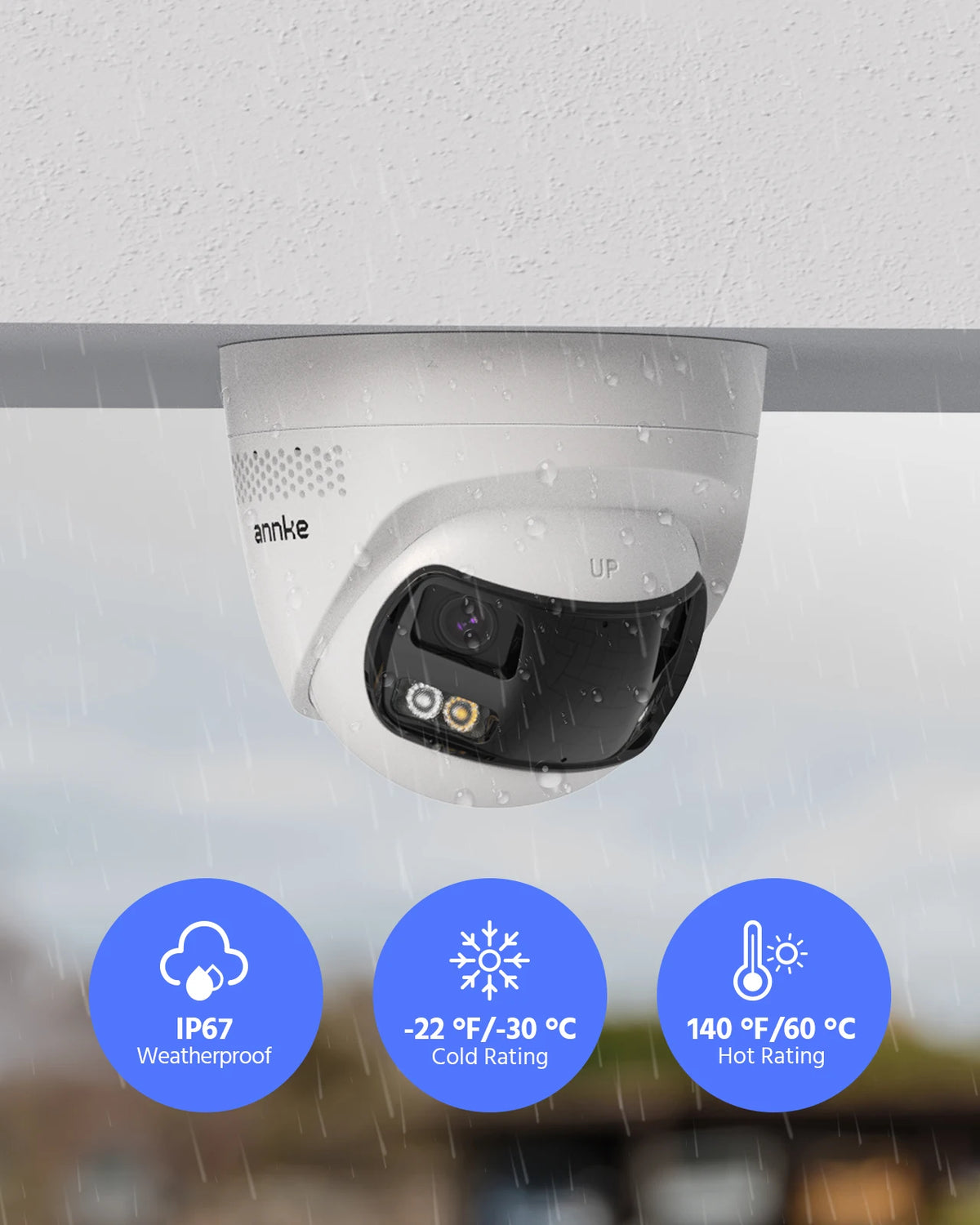

Weatherproof Rating |
IP67 |
Dimension (L x W x H) |
Ø 130.1 mm × 109.1 mm (Ø 5.1" × 4.3") |
Weight |
Approx. 586 g (1.3 lb.) |
